Max Range 100KM
Cut-off Speed 25KM/H
Suspensionwith Lockout
Large Capacity Battery 468Wh
Powerful Performance. Smooth Rides.
Strong Motor for
Effortless Rides
A powerful brushless motor makes travel easier and commutes more efficient.
Ride Farther.
Explore More.
The 468Wh high-capacity battery enables a 100km range in assist mode, ideal for long rides.
Bigger Tires.
Boundless Tours.
With 27.5″ large-sized CST pneumatic tires, enjoy smooth rolling on all road surfaces for a pleasant riding experience.

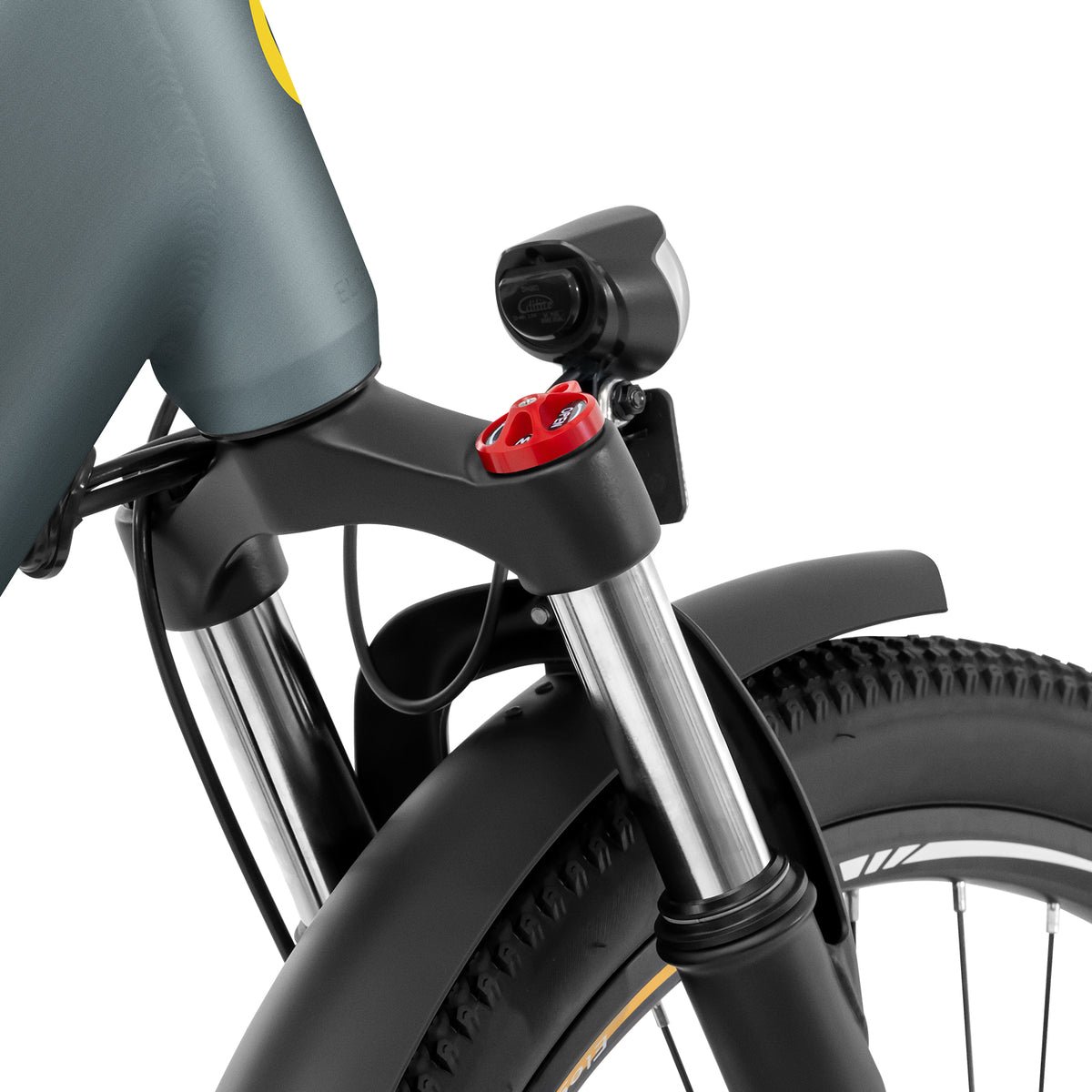

Front Suspension
with Lockout
Lock it on flat roads for energy efficiency, and unlock it on bumpy paths for a comfortable touring ride.
Suspension Travel: 80mm

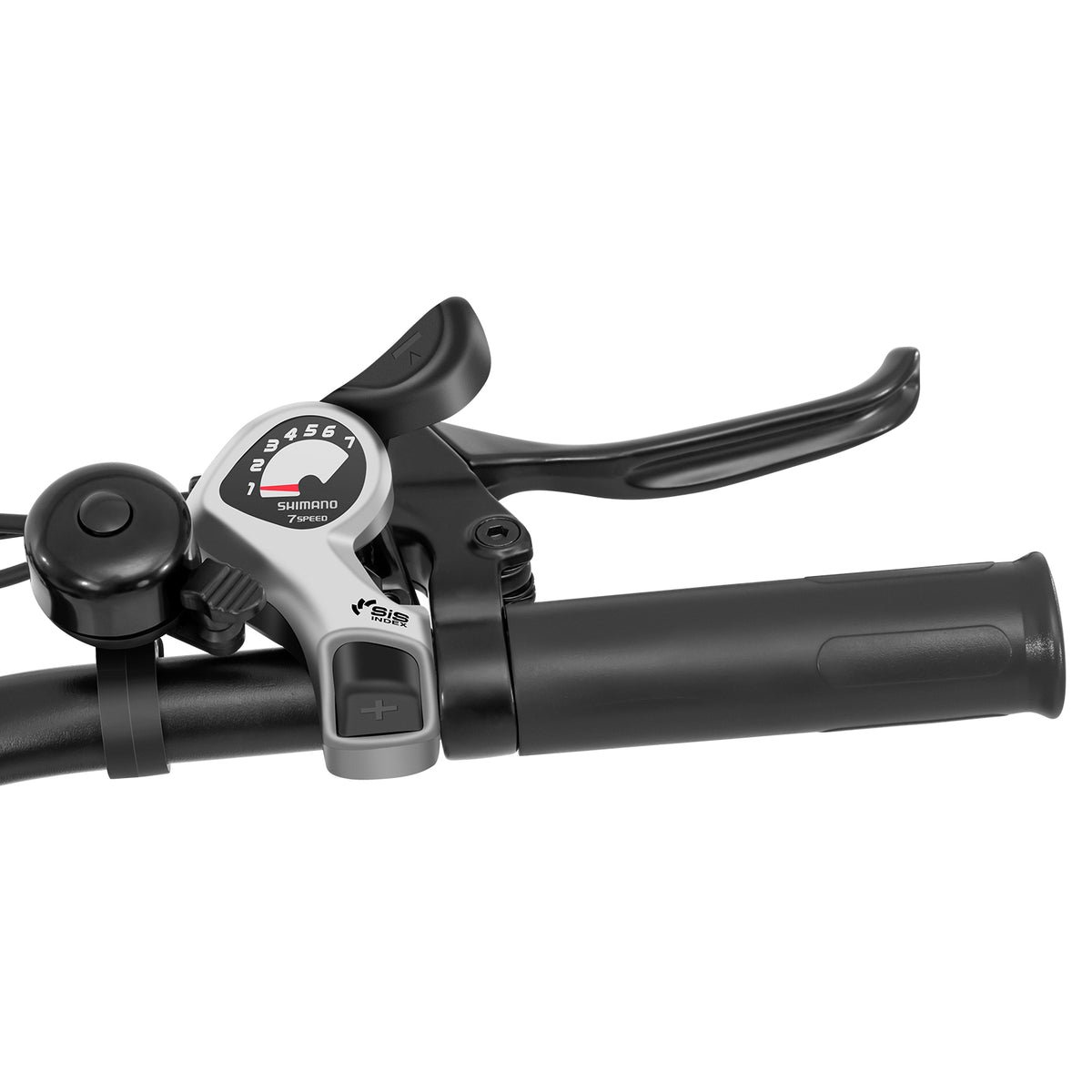

Multi-Gear System:
Effortless Riding
With the 7-speed Shimano shifting system, enjoy seamless gear changes for an easy and pleasant riding experience.
Multiple Modes.
Switch Freely.
5 PAS Levels

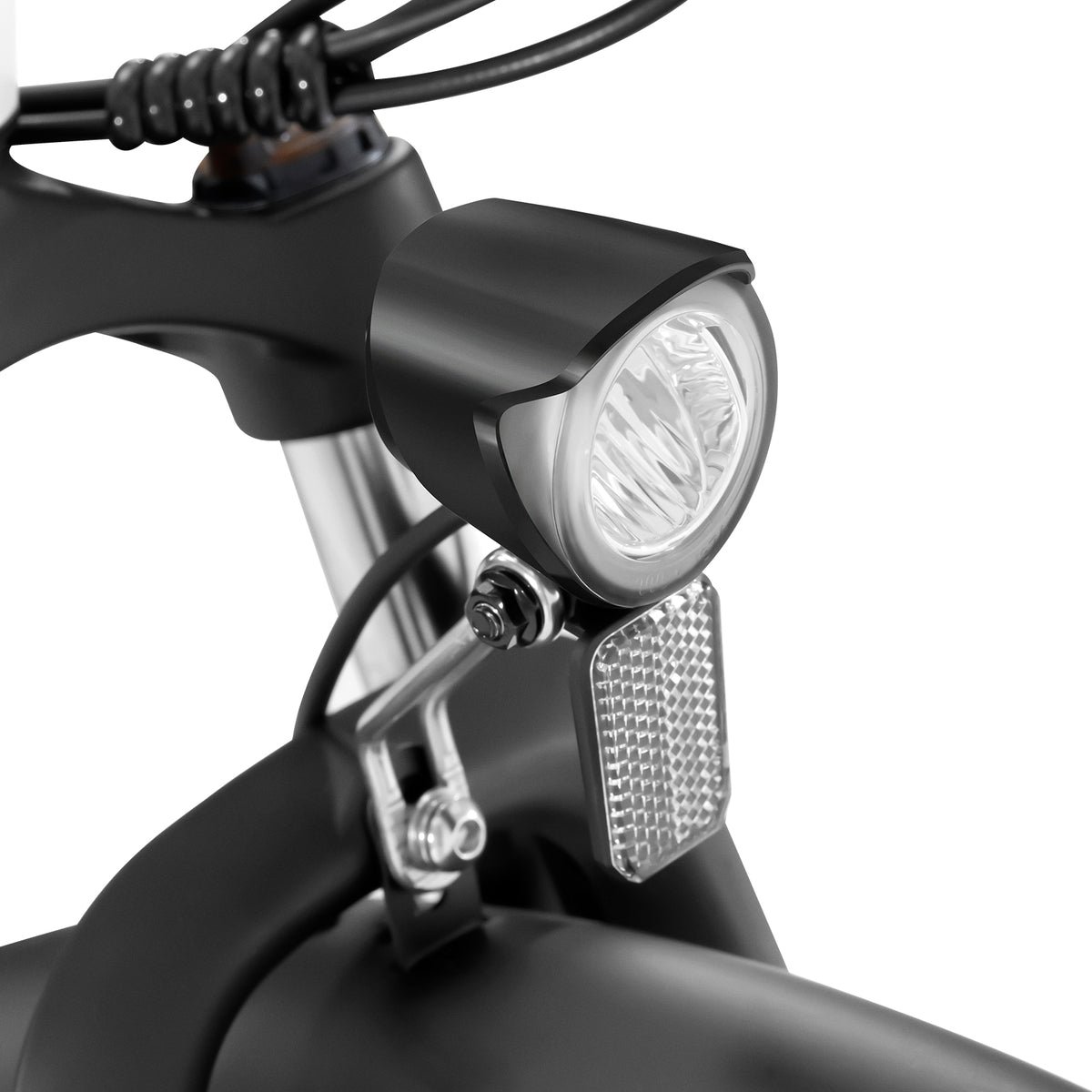

StVZO-Certified Lights: Safer Night Rides
Smart Control. Easy Ride Data.
Delivers real-time data display and smart app control for a smoother, hassle-free ride.
Multi-Angle Stem for Comfort
Enjoy a more comfortable and personalized ride!
Product Details
Basic Spec.
Net Weight: 25kg
Unfolded Size: 1790x680x1120mm
Size of Frame: 27.5″x17.5″
Length of Handlebar: 660mm (26.8″)
Height of Saddle (from the ground): 31.5″-39.4″ (800mm-1000mm)
Recommended Rider Heights: 155-195cm (5’1″-6’5″)
Max Load: 120kg (264.5 lbs)
Cut-off Speed: 25km/h
Max Range: 100km (Assist Mode)
Pedal Assist Levels: 12/16/20/23/25 km/h
Walk Mode: 6km/h
Waterproof Level: IPX4
Material of Frame: Aluminum Alloy

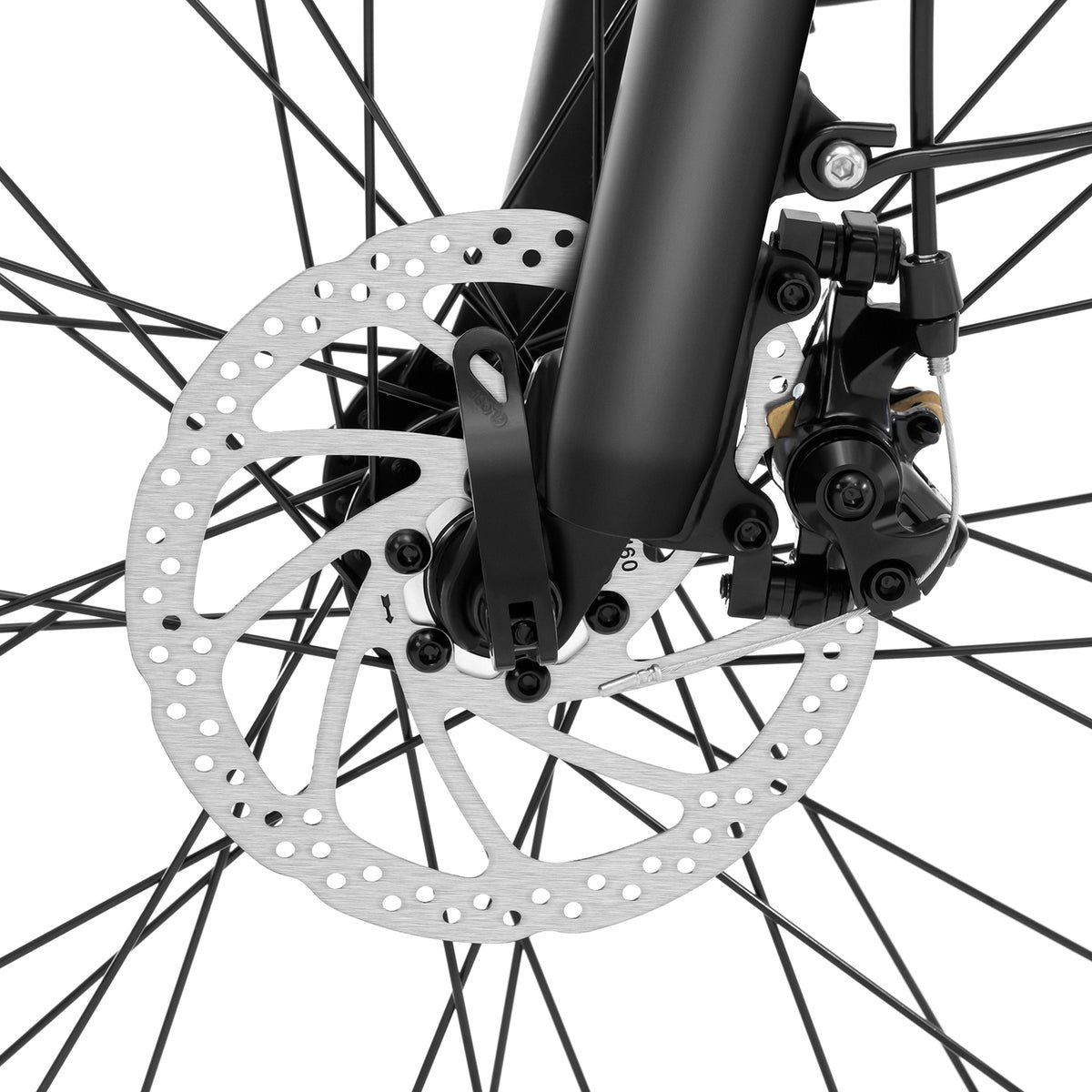

Braking System: Front & Rear Disc Brakes + Auto Power-off Design
Motor
Type: Hub Motor
Rated Power & Voltage: 250W (Rated Voltage 36V; Ins Max Power 500W; Max Output Torque 50N.M)
Derailleur
Brand: Shimano
Number of Gears: 7 (Rear)
Suspension
Type: Hydraulic Suspension with Lockout
Suspension Travel: 80mm
Battery
Voltage & Capacity: 36V, 13Ah
Charging Time: 6.5h
Power Capacity: 468Wh
Protection System: Yes
Tires
Size: 27.5″x2.1″
Type: CST Pneumatic Tires
Tire Pressure: 45-65PSI
Best Tire Pressure: 50-55PSI
Display
Size: 3.5″
Type: LCD
Information: Speed, Battery Level, Trip Distance/Odometer, Assist Level, Walk Mode, Light Mark, Brake Mark
Functions: Power on/off, turning light on/off, shifting assist levels
Charger
Input: 100-240V, 1.8A
Output: 42V, 2A
Package List
Size: 1500x250x850mm
Gross Weight: 34.9kg
1 x E-Bike 1 x User Manual
1 x Charger 2 x Pedal (Left & Right)
1 x Headlight 2 x Spoke Reflector
1 x Taillight 2 x Mudguard (Front & Rear)
1 x LCD Display 1 x Saddle
1 x Tool Kit 2 x Key
| Color | Grey, White |
|---|
